Strong, Reliable Rebar Connection
CBT On Position Parallel Threaded Couplers are Mechanical Connectors use for Reinforcing Steel Bars in Concrete Structure (mostly use in cage system). It is designed to comply with the requirements specified by Local and International Standard Specification as applicable but not limited to; BS 8110, ACI 318, UBC 1997 and ISO 15385. CBT On Position Parallel Threaded Coupled Rebar performance is traditionally tested based on ISO 15385 as Category “F” requirements for Quality Control and Product Quality Assurance.
CBT On Position Parallel Threaded Coupler Advantages
- Performs like a continuous rebar
- Provides 100% load transmission
- Improved steel to concrete ratio
- Reduce congestion of rebar and allows better flow of the concrete
- Provides greater flexibility to the Structural Engineer
- No rebar wastage and no overlapping
- No need to rotate rebars
- Quick installation and easier alignment of pre-fabricated bars in cages
- Adjustable length in the connection of different rebar length.
- Have lock nut to make sure that there is no coupler movement
- Splice strength is developed independent of the concrete quality
- Suitable for static and dynamic load
CBT Position Parallel Threaded Coupler
Why we are best in the industry
Certified Quality Materials
Bautech International L.L.C. has grown to become one of the leaders in this field. We have worked on numerous
Complete End-to-End Solutions
Bautech International L.L.C. has grown to become one of the leaders in this field. We have worked on numerous
Long-Term Durability
Bautech International L.L.C. has grown to become one of the leaders in this field. We have worked on numerous
Expert Technicians
Bautech International L.L.C. has grown to become one of the leaders in this field. We have worked on numerous
Area of Application
- Piles
- Foundation
- Columns
- Bridges
- Future Expansion
- Others as Applicable
- Dams

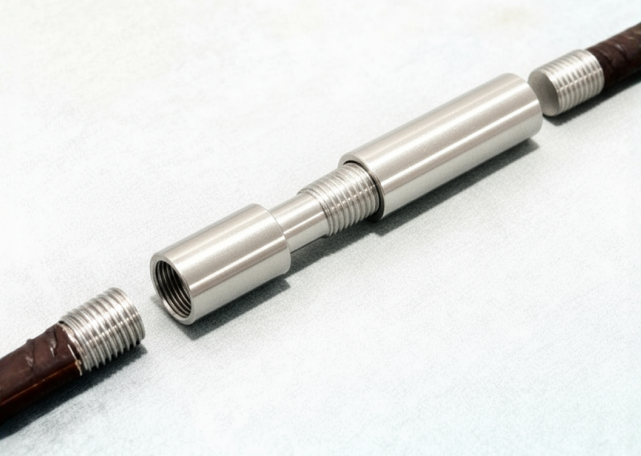

Splicing Method
- Enlarge the saw cut end of the reinforcing steel bar for cold forging process
- Produce a parallel standard metric thread at the forged end area.
- Splice the rebar by using CBT Position Threaded Coupler.
Our Products
Bautech International L.L.C. has grown to become one of the leaders in this field. We have worked on numerous projects with the largest Companies in the U.A.E., including Arabtec, Habtoor Leighton Group, Al Shafar General Contracting and the R.T.A.
Threaded Splicing for Rotatable Rebar
Threaded Splicing for Rotatable Rebar
Threaded Splicing for Rotatable Rebar with Different Diameters
Threaded Splicing for Rotatable Rebar with Different Diameters
Threaded Splicing for Non-Rotatable Rebar
Threaded Splicing for Non-Rotatable Rebar
Threaded Splicing for Non-Rotatable Rebar with Stop Nut
Threaded Splicing for Non-Rotatable Rebar with Stop Nut
